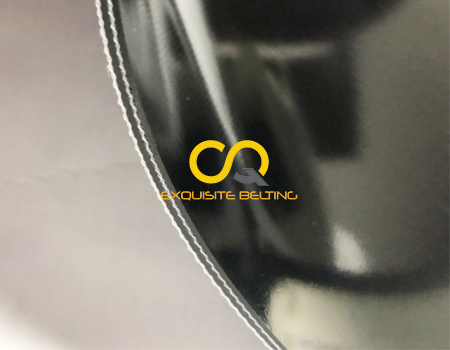

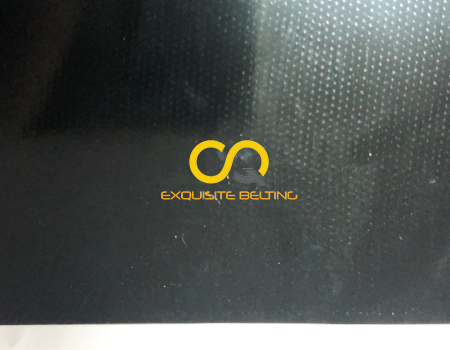

Black PVC(Polyvinyl Chloride) Conveyor Belt Thickness 3.0mm Cinta transportadora de PVC(Cloruro de Polivinilo) Negra Espesor 3.0mm Correias Transportadoras PVC Preto Espessura 3.0mm Convoyeur à courroie PVC(Chlorure de Polyvinyle) Noir épaisseur 3.0mm Ленты конвейерные PVC(Поливинилхлорид) черный (ПВХ) толщина 3.0mm Schwarz PVC Fördergurte Dicke 3.0mm موٹائی کنویئر سیاہ PVC پیویسی 3.0mm
| สาย พาน ลำ เลียง สีดำ PVC โพลีไวนิลคลอไรด์ ความหนา 3.0mm đen Băng tải PVC trắng bề dầy 3.0mm Siyah PVC(Polivinil Klorür) konveyör bant kalınlık 3.0mm 검은 PVC(폴리 염화 비닐) 컨 베이어 벨트 두께 3.0mm Hitam Penghantar Tali Pinggang PVC(Polyvinyl Klorida) Ketebalan 3.0mm 黒PVC(ポリ塩化ビニル) 搬送コンベヤベルト 厚さ3.0mm পিভিসি পলিভিনাইল ক্লোরাইড পরিবাহক বেল্ট বেধ 3.0mm কালো |
(*Youtube is invisible in China, please click the picture, watch it on Youtube*)
(* Youtube es invisible en China, por favor haga clic en la imagen, véala en Youtube *)
EXQUISITE INTL all the time insist on selecting durable polyester fabric as the core and environmental new PVC as material as well as special unique formulations, thus makes the belt work life plus 5%-15%, it is outstandingly reducing the user's cost and increase the productivity rate 10%-20%, guarantee user's projects. |
 |
|
|
|
| GENERAL CHARACTERISTICS |
|
|
*anti-oil anti-grease *moisture proof *low extension *anti-corrosion *Non-toxic, non-odorless
*high tensile strength *anti high and low temperature *strong bonded, no shedding |
|
|
|
|
|
|
|
|
| BELT Structure |
|
|
|
| No. of Ply: | 2 | Minimum Pulley Diameters |
|
| Fabric Features | 2 ply fabric, 2 ply pvc | Positive Operation: 80mm |
|
| Top Surface | PVC | Reverse Operation: 120mm |
|
| -Color | Black |
|
|
| -Thickness | 1.2 mm | Conveyor Frame Characteristics |
|
| -Hardness | 75 Shore A | Trundle Bed: YES |
|
| Surface | Q Struc | Metal Groove: YES |
|
| Bottom Surface | Fabric | Plate Roller to Support: YES |
|
| Total Thickness | 3.0 mm | Inverted Wheel to Support: NO |
|
| Weight | 5.2 kg/㎡ | Special Mixed Inverted Wheel Groove: NO |
|
| Anti-static | Yes | Reverse Slide: YES |
|
| Maximum width | 3500mm |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Belt Strength |
| Joint Methods |
|
| fracture tension: 300 daN / cm | hot Melt: FOF |
|
| recommended maximum working tension: 22 daN / cm | buckle: K1 B2/Z or Inox |
|
| working tension under extension rate of 1%: 18 daN / cm |
|
|
|
|
|
|
|
|
|
|
| Operating Temperature: -20℃ to 80℃ | Bottom Cover Friction Coefficient |
|
temperature± 30% influenced by working time,
weight of material, different factors in the environment | Stainless steel, surface: 0.24 |
|
| Stainless steel, semi-glossy: 0.24 |
|
| Stainless steel, heat lamination surface: 0.25 |
|
| Scroll Plate: 0.23 |
|
|
| Glossy plastic board: 0.28 |
|
|
|
|
|
| Special Executions |
The test data under the environment: + 25 ℃, 70% relative humidity. And in other circumstances, the data are subject to change, EXQUISITE INTL does not specify more. |
