Product Detail

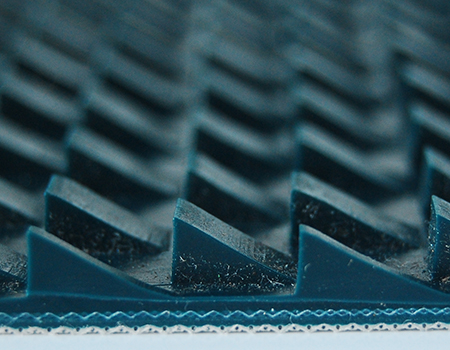

Wedge Blue PVC Conveyor Belt 8.8mm

Wedge Blue PVC Conveyor Belt 8.8mm

Origin： Shanghai, China
Material： PVC
Standard： Yes
Samples： Yes & Free
Delivery： 7-15 days
Service： Life-long
Custom： Yes
Whatsapp
Technical Index


Wedge Blue PVC Conveyor Belt 8.8mm

CintaTransportadora De Azul Cuña


Beijing EXQUISITE International Development Co., Ltd all the time insist on selecting durable polyester fabric as the core   and environmental new PVC as material as well as special unique formulations, this makes the belt work life plus 5%-15%, it is outstandingly reducing the user's cost and increase the productivity rate 10%-20%, guarantee user's projects.




STANDARD PRODUCTION

Scientific and rigorous passion, standard production rule, advanced machinery.

All the time insist on selecting high quality and high strength polyester fabric as the core.

All the time insist on selecting environmental   new PVC as material.

Special formulations surpass competitors.


FEATURES

Anti-static and non-conductive.

Resistance to abrasion, oils, fats and chemicals.

Surfaces with low, medium or high coefficient of friction.

High transverse rigidity and dimensional stability.

Low noise (LdB belts).








GENERAL   CHARACTERISTICS

*anti-oil   anti-grease          *moisture proof   *low extension          *anti-corrosion   *Non-toxic, non-odorless
*high tensile strength        *anti   high and low temperature          *strong bonded, no shedding






BELT Structure


No. of Ply:2Minimum Pulley Diameters
Fabric Features

2 ply fabric, 2 ply pvc

Positive Operation:   110mm
Top SurfacePVCReverse Operation:   130mm
-ColorBlue green

-Thickness6.0 mmConveyor Frame Characteristics
-Hardness55 Shore ATrundle Bed: YES
SurfaceQ StrucMetal Groove: YES
Bottom Surface

Fabric

Plate Roller to Support: YES
Total Thickness8.0 mmInverted Wheel to Support: NO
Weight6.3 kg/㎡Special Mixed Inverted Wheel Groove: NO
Anti-staticYesReverse Slide: YES
Maximum width3500mm










Belt Strength
Joint Methods
fracture   tension: 340 daN / cmhot Melt: FOF
recommended   maximum working tension: 30 daN / cmbuckle: K1 B2/Z or Inox
working tension under extension rate of 1%: 32 daN / cm







Operating   Temperature: -20℃ to 80℃Bottom Cover Friction Coefficient
temperature± 30% influenced by working time,
weight of material, different factors in the environment		Stainless steel, surface: 0.24
Stainless steel, semi-glossy:   0.24
Stainless steel, heat   lamination surface: 0.25
Scroll Plate: 0.23

Glossy plastic board: 0.28



                                                                                        Special Executions

The   test data under the environment: + 25 ℃, 70% relative humidity. And in other   circumstances,   the data are subject to change,

EXQUISITE INTL does not specify more.
