Transparent PE Conveyor Belt 2.8mm

Origin: Shanghai, China
Material: PE
Standard: Yes
Samples: Yes & Free
Delivery: 7-15 days
Service: Life-long
Custom: Yes
Technical Index


EXQUISITE INTERNATIONAL PE conveyor belt:

High tensile strength, good bending, light and thin, oil resistance, non-toxic and hygienic, easy to clean. It satisfies the US FDA food hygiene standards, has good abrasion resistance and physical aging resistance, and is a durable conveyor belt.



EXQUISITE INTERNATIONAL Cinta transportadora de PE

Alta resistencia a la tracción, buena flexión, ligero y delgado, resistencia al aceite, no tóxico e higiénico, fácil de limpiar. Cumple con las normas de higiene alimentaria de la FDA de EE. UU., tienes buena resistencia a la abrasión y al envejecimiento físico, y es una cinta transportadora duradera.

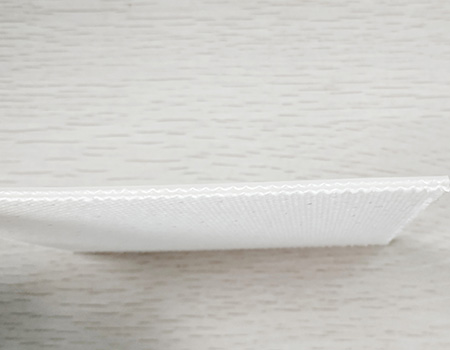

2.8mm PE transparent conveyor belt.png


(*Youtube is invisible in China, please click the picture, watch it on Youtube*)

(* Youtube es invisible en China, por favor haga clic en la imagen, véala en Youtube *)







GENERAL   CHARACTERISTICS

*anti-oil   anti-grease          *moisture proof   *low extension          *anti-corrosion   *Non-toxic, non-odorless
*high tensile strength        *anti   high and low temperature          *strong bonded, no shedding






BELT Structure


No. of Ply:2Minimum Pulley Diameters
Fabric Features

Elastic

Positive Operation:   60mm
Top SurfacePEReverse Operation:   30mm
-ColorTransparent

-Thickness0.9 mmConveyor Frame Characteristics
-Hardness92 Shore ATrundle Bed: YES
SurfaceQ StrucMetal Groove: YES
Bottom Surface

Conductive fabric

Plate Roller to Support: YES
Total Thickness2.8 mmInverted Wheel to Support: NO
Weight3.3 kg/㎡Special Mixed Inverted Wheel Groove: NO
Anti-staticYesReverse Slide: YES
Maximum width3500mm










Belt Strength
Joint Methods
fracture   tension: 280 daN / cmhot Melt: FOF
recommended   maximum working tension: 26 daN / cmbuckle: K1 B2/Z or Inox
working tension under extension rate of 1%: 22 daN / cm







Operating   Temperature: -20℃ to 80℃Bottom Cover Friction Coefficient
Temperature± 30% influenced by working time,

Weight of material, different factors in the environment

Maximum working slope 45°

Stainless steel, surface: 0.18
Stainless steel, semi-glossy:   0.18
Stainless steel, heat   lamination surface: 0.25
Scroll Plate: 0.18

Glossy plastic board: 0.22



                                                                                        Special Executions

The   test data under the environment: + 25 ℃, 70% relative humidity. And in other   circumstances,   the data are subject to change,

EXQUISITE INTL does not specify more.
