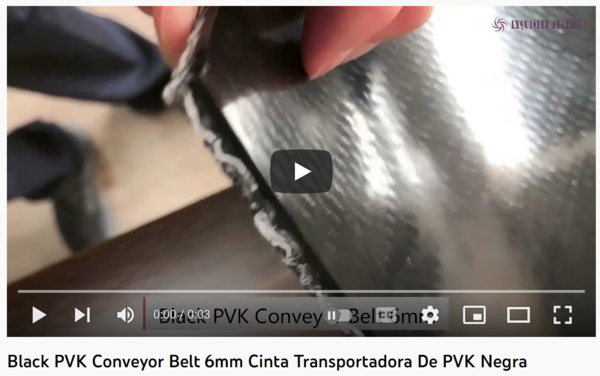

Black PVK Conveyor Belt 6mm

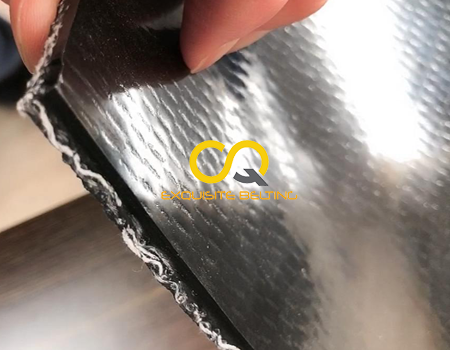

PVK conveyor belt is made of cotton fabric. The cotton fabric is a three dimensional knitted core fabric that is impregnated with PVK slurry. This processing method does not cause dangers of layering.
The PVK conveyor belt has flame retardant properties. At the same time, it also has high abrasion resistance and cut resistance, and has a longer service life than ordinary PVC conveyor belt. It is suitable for long distance transportation industries such as logistics, airports, express delivery, and postal services.
EXQUISITE International PVK conveyor belt thickness: 3mm ~ 8mm, customized production available.
| CONSTRUCTION |
|
|
| DATA |
|
|
|
| Top Cover | Material: PVC |
|
| Hardness: Top cover 80 Shore A |
| | Cover structure: SMOOTH |
|
| Bottom cover |
|
| | Color: BLACK |
|
| Antistatic properties: Top cover - |
| Intermed. | Material: SOLID WOVEN FABRIC |
| : Bottom cover - |
| layer | Color: - |
|
| Temperature: Min. : -10 ℃ |
| Bottom | Material: - |
|
| : Max. : 80℃ |
|
| cover | Cover structure: - |
| Pulley-diameter |
|
|
| | Color: - |
|
| 1. Norm flexing Min.∅: 120 |
| Upper | Warp: - |
|
|
| 2. Back flexing Min.∅: 140 |
| fabric | Weft: - |
|
|
| No.of plies: 1 PLY |
|
| Intermed. | Warp: |
|
|
| Breaking load: 180 N/mm |
|
| fabric | Weft: |
|
|
| Pull for 1% |
|
|
| Bottom | Warp: - |
|
|
| Elongation: 15 N/mm |
|
| fabric | Weft:- |
|
|
| Weight: 7.5kg/m2 |
|
|
| Top Cover Thickness:3mm |
|
| COEFFICIENT OF FRICTION |
|
| Bottom Cover Thickness: 0.1mm |
| Steel: |
|
|
|
| Total Thickness: 6 mm |
|
| Plastic/Wood: |
|
|
|
|
|
|
|
|
|
|
|
| Additional information: | MAX. PRODUCTION WIDTH: 2.1M |
|
|
| Applications: |
| GENERAL PURPOSE OF LIGHT DUTY CONVEYING SYSTEM |
| |
|
|
|
|
|
|
|
|
| Special characteristics |
|
|
|
|
|
|
| Joint methods |
| FINGER SPLICING |
|
|
|
|
| |
|
| OVERLAP SPLICING |
|
|
|
|
| |
|
| MECHANICAL FASTENER |
|
|
|
La cinta transportadora PVK está hecha de tela de algodón. La tela de algodón es una tela tricotado de núcleo tricotado que se impregnada con suspensión de PVK.
Este método de procesamiento no causa peligros de estratificación. La cinta transportadora PVK tiene propiedades ignífugas.
Al mismo tiempo, también tiene una alta resistencia a la abrasión y al corte, y tiene una vida útil más larga que la cinta transportadora de PVC normal.
Es adecuado para industrias de transporte de larga distancia como logística, aeropuertos, entrega urgente y servicios postales.
EXQUISITO International espesor de cinta transportadora de PVK: 3 mm ~ 6 mm, producción personalizada disponible.
